We explored how IoT might help school garden programs become more successful even with limited space and staffing.

3D renders of our familiy of "smart" garden components

Every School Deserves One
Project | Inspiration Garden
Team Members | Brenna Carlsrom • Melissa Kolko • Laura Nielsen
My Role  | UX Research/Design • 3D Product Design • Concept Design •  Storyboard Artist
Project Duration| 12 Weeks
Tools | Pen & Paper • Autodesk Fusion 360 • Photoshop • Rapid Prototyping

______________________________

Challenge

How can we create a sustainable garden program
for schools with limited space and/or staffing?


Context
School gardens enhance learning by improving test scores and eating habits, but due to limited space and staff, they are difficult to maintain and integrate into the classroom. Our challenge was to create a family of IoT devices to make school garden programs more successful. ​​​​​​​
Project Goals
We wanted to create a system that could accommodate small or unusual spaces, and be sustainable throughout the school year. We understood that school breaks could negatively impact the garden. We wanted to design an automated system that would complement an elementary school setting. It was important to make it engaging for all the stakeholders, and create something that could be integrated into classroom learning. We would research "smart" garden products and other emerging tech for possible prototype concepts.  ​​​​​​​
Results
Our garden ecosystem is a "smart" environment which can be maintained automatically. The project revealed that Inspiration Garden supplements classroom learning, making lessons about nutrition and sustainability both exciting and fun for students and teachers.
_______________________________
​​​​​​​
Research
We observed how much the kids loved being outside, and how all the garden lessons were age appropriate. Each grade had their own garden bed to take care of, and the kids would check on the progress of their seedlings every time they were in school. With the added benefit of having parent volunteers to help teach the lessons, teachers were able to enjoy being outside too. "They were so excited to harvest and eat their own vegetables," said Terra, parent volunteer. The fresh vegetables were used to make salads, soups, and baked goods.  For most kids it was the first time they really enjoyed eating vegetables. Our team saw first hand the importance of a school garden  This experience connects the children to the planet and shows them the importance of growing food for their health and survival.

The school brought in Growing Great to teach lessons about nutrition.
The school brought in Growing Great to teach lessons about nutrition.
Intergenerational Learning Model Early Concept Sketches
The smart refrigerator would help seniors and young children prepare and share meals together. The interface on the refrigerator door was connected to the garden outside. You could see both the contents of the fridge and what was ripe in the garden. Based on available ingredients you could use the touch screen select a recipe to prepare. The AI would use VoiceOver to give step-by-step recipe instructions to the seniors and children.
How the devices are connected
How the devices are connected

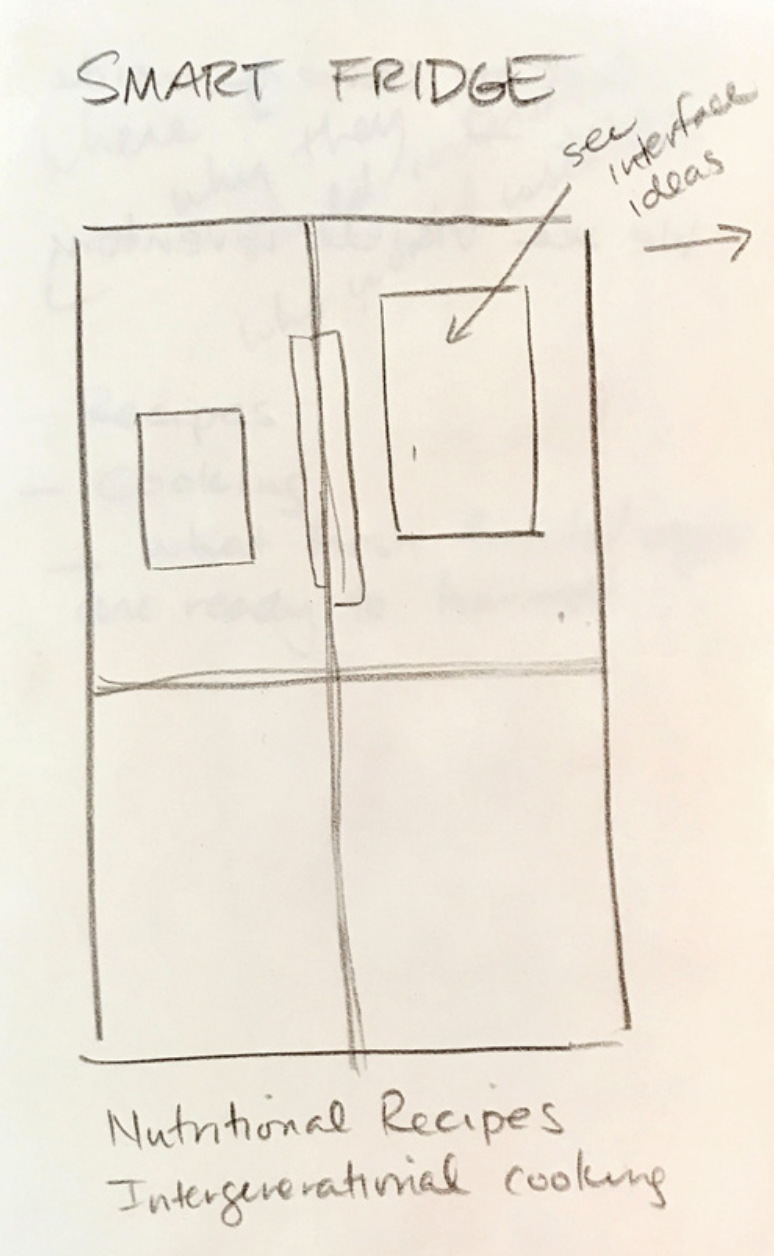

Interface on the front of the refrigerator
Interface on the front of the refrigerator
Arrow indicates the screen
Arrow indicates the screen

This Pizza Hut concept inspired the interactive picnic bench

The interactive table top would include games and art projects
The interactive table top would include games and art projects

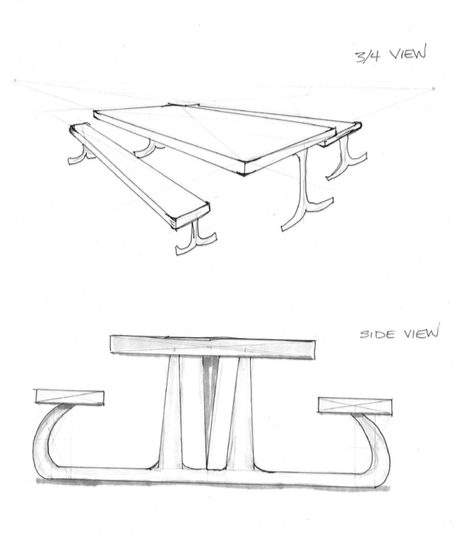

Bench design to compliment a garden setting
Bench design to compliment a garden setting
Access & Sustainability
Research revealed how my daughter's school implemented a drip line watering system to conserve water. Unfortunately, after the first year, parent volunteers dropped off and the garden dried up.​​​​​​​ We knew we had to look into "smart" garden products. Also, how can our team create an opportunity for schools without the space for a garden to have access.
Sustainability was always a key component for me. Using a  rain barrel as a model for my system was an early concept. How can I create an enchanted object to work in a garden.

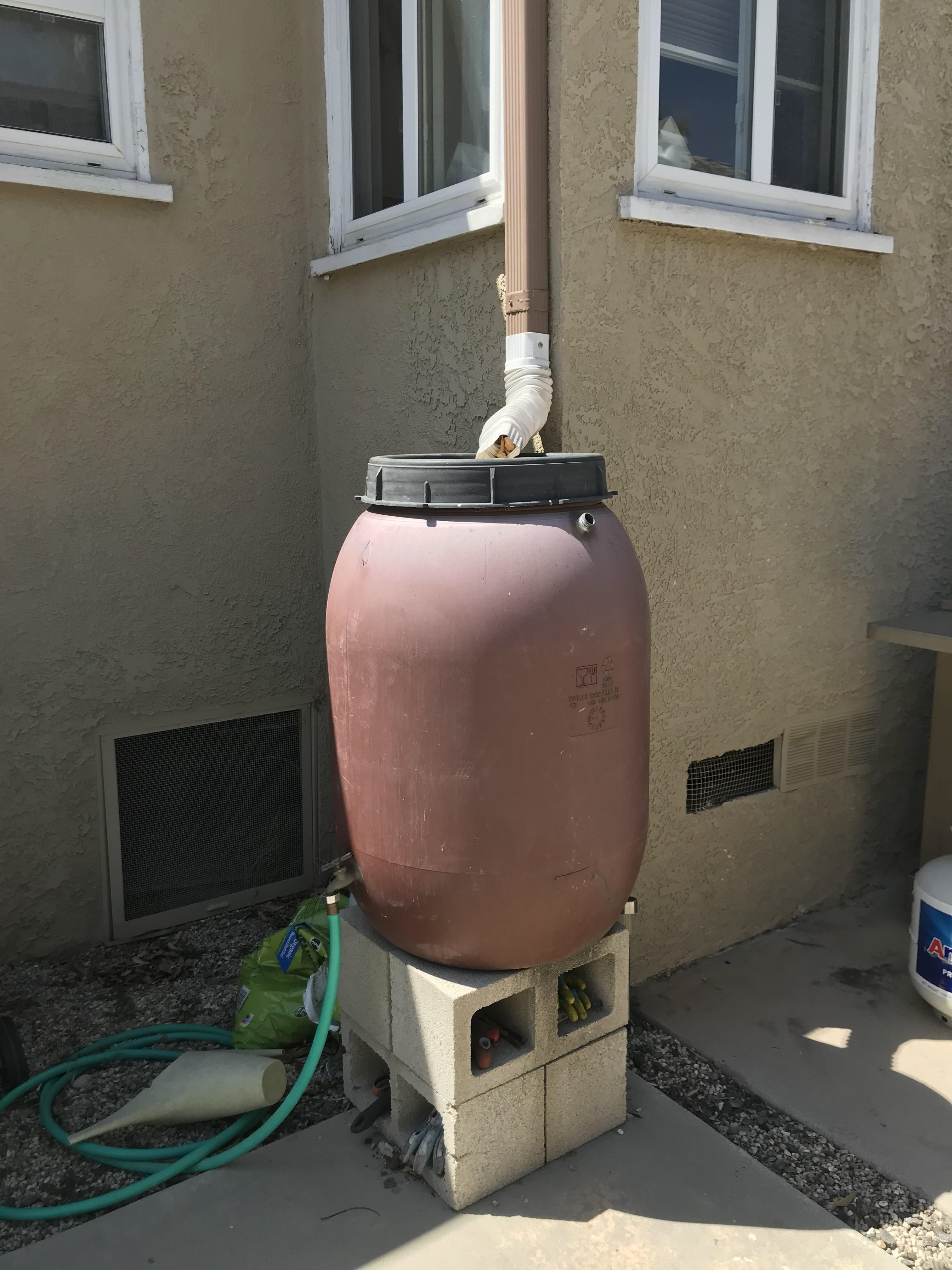

Image of a working rain barrel

Key Survey Questions:
   How would you use a rain barrel to educated kids in the garden or classroom?
•    How would you use Augmented Reality in the garden or classroom?
•    How would an automated watering system be beneficial for your school garden?

Andrea, K-12 Teacher
Andrea, K-12 Teacher
Rob, K-12 Teacher
Rob, K-12 Teacher
Michelle, Garden expert
Michelle, Garden expert

"The rain barrel would teach about water
conservation and rainfall levels in our area.”
Rob, teacher


Insights
•  "The automated watering system would be great for a school garden since we are not there on weekends and holidays, so for weeks at a       time!”  ​​​​​​​- Andrea, teacher
•    "Augmented Reality would bridge the disconnect between what they see and what they read." - Rob, teacher
I spoke with gardening expert Michelle about out IoT system. "Every garden should have a rain barrel, and it should be connected to a downspout for optimal rain gathering," she said. The issue is that some schools currently have the downspout connected to a drain.
Prototype Ideas
Our research confirmed my rain barrel direction. Sustainability is a key component of my design process, so I included solar panels to power the sensors that open and close to distribute water. I thought of adding LED indicator lights on the outside of the barrel, this would add an interactive component that the kids could observe and offer a teaching opportunity. Once I rounded the shape of the solar panels, they reminded me of little Gecko feet, this led to naming the barrel Gilli, the Gecko. ​​​​​​​
Possible shapes and lights
Possible shapes and lights

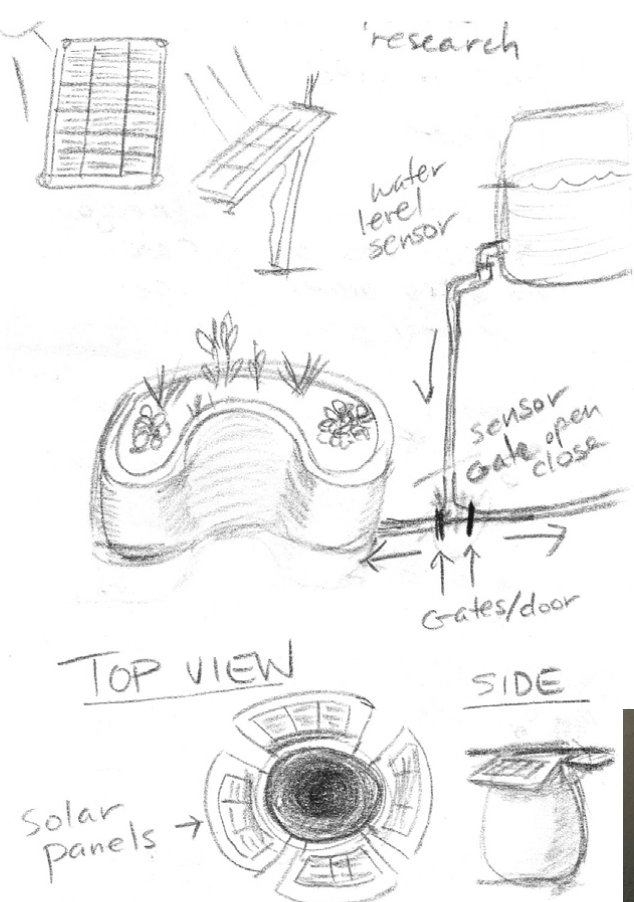

Solar panel idea
Solar panel idea
Adding indicator lights
Adding indicator lights
solar panel
solar panel
rapid prototype pattern
rapid prototype pattern
cardboard prototype
cardboard prototype
completed mini version of Gilli
completed mini version of Gilli
I made a small scale model out of cardboard to see how Gilli would look with the other garden components. Once I prototyped Gilli I could see how the sunlight could produce a pattern on the ground which resembled a Gecko.
Launching our Prototype
We created a mini version of the Inspirational Garden to conduct ethnographic research and user-testing. We set the prototype up in a park next to a playground. I added LED lights to the back of my Gilli prototype to simulate how his back and tail would light up when it was watering. The problem was that the LED lights were impossible to see in daylight. I would use bigger and brighter lights if I were to test it again (image below far right). In the image below, I am conducting an A/B test using sound choices (ocean waves, rain, and a flowing creek) for Gilli when it's watering. It was unanimous -- the kids liked the creek sound!​​​​​​​
Testing sounds for Gilli
Testing sounds for Gilli
3D Print of Maggie
3D Print of Maggie
Rapid Prototype of Gilli
Rapid Prototype of Gilli

User testing

Bottom left image: is an imported sketch from Adobe Illustrator. Center image: Wireframe of Gilli. Far right image: I experimented with different material for the surface, and decided on led lights under the surface for a smoother finish.

Design for solar panels
Design for solar panels

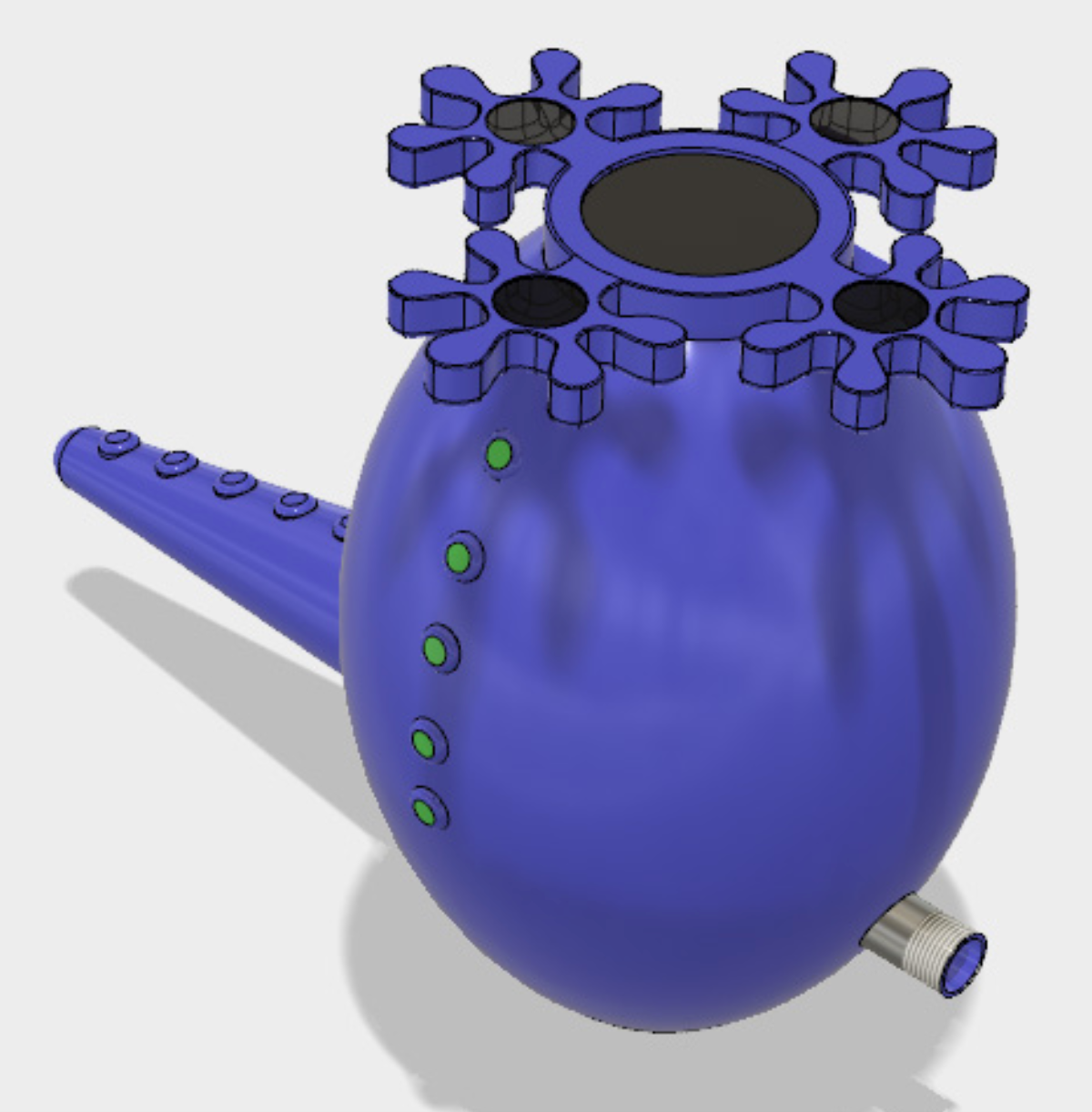

Wireframe with hidden edges
Wireframe with hidden edges
Experimenting with materials
Experimenting with materials
Refine & Design

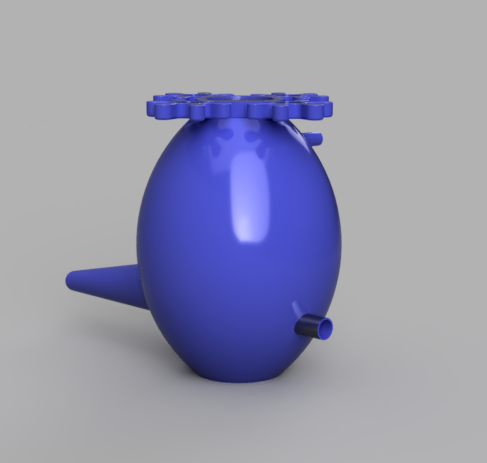

I added an over flow valve based on an actual rain barrel. Staying with a grade school theme we decided on primary colors for our objects. The Blue Gecko does exist, so I made Gilli blue. Since we were designing with children in mind, I chose a lighter more happy shade of blue and eliminated the LED buttons. The final prototype would be made of Polyethylene (HDPE) an outdoor use plastic, which is less shiny than the prototype on the top right.​​​​​​​
Feature Mockups
•   Solar Powered.
•  Has Automated/Manual Operation.
•  The watering Sensor is connected to "Hooty" the Owl, which is the weather sensing hub of the garden system.
•  Gilli, is also connected to the soil moisture sensor built into the modular garden beds.
•  LED lights on Gilli's surface are connected to water level sensors in the barrel.
•  The LED lights give feedback for water level in the rain barrel, and watering mode.
Experimenting with colors
Experimenting with colors
Rounded the tail
Rounded the tail
Removed button-type lights
Removed button-type lights
User-testing 3D Printed Prototypes

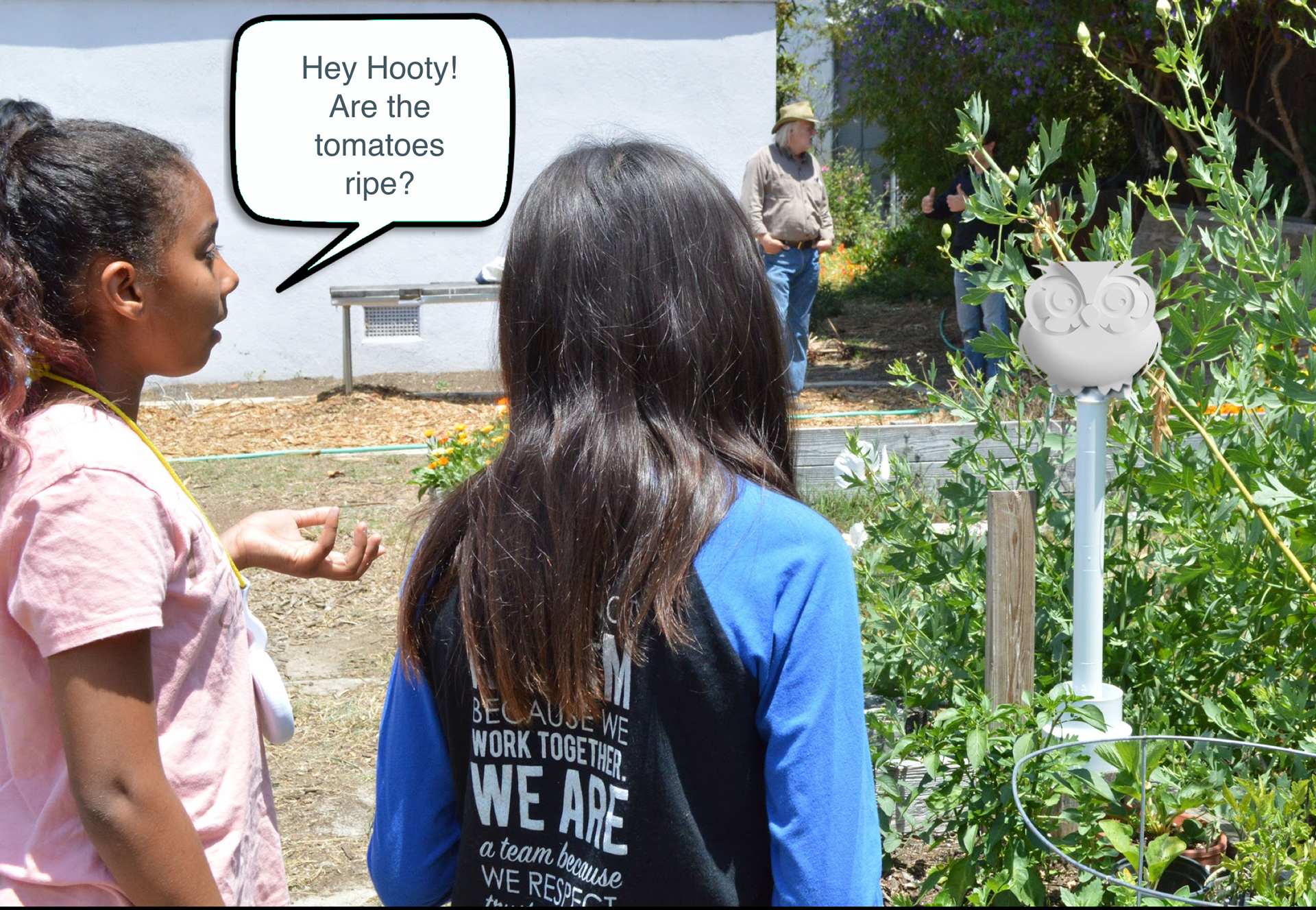

Jasmine, is using Maggie the magnifying glass, which has an AR feature for garden learning. She wants to learn about tomatoes, and whether they are ready to pick and eat.
3D printed prototype of Maggie
3D printed prototype of Maggie
User Scenario with Prototypes to scale
An interconnected Garden System
Gilli's sensors detect water level in the barrel, and trigger the LED lights to light up red when water level is low.
The soil sensors communicate moisture levels, and will trigger Gilli to water the garden when moisture levels are low.
Hooty,  the weather sensor can detect rainfall and will trigger Gilli's watering sensor to remain shut.
Maggie, the AR (Augmented Reality) magnifying glass has an interactive interface for learning about the garden.
Reflections
How could our team connect generations in an outdoor space in a way that fosters growth by strengthening individuals and communities? We had to pivot from this original idea because we realized we were designing a service, not our goal of a Smart Environment with a family of products that work in concert with each other. We shifted our focus to elementary school age children, the benefits of school gardens, and how to integrate them into the classroom. It was about pulling the interactions off the digital screen and bringing it back into the world.
inspiration garden components, gills, ribbit, hoody and maggie

Inspiration Garden (Gilli, Ribbit, Hooty, and Maggie)
